Dynamic Adjustment of Bottom Sheet Height in SwiftUI Based on Content inside

SwiftUI's native bottom sheet component is excellent and usually requires minimal effort. However, there are times when calculating the exact height can be tedious. In this post, we explore a way to make the bottom sheet dynamically adjust its height based on its content.

Problem Overview

Starting with the code below, we have a simple button that triggers a bottom sheet to appear on the screen using the .sheet modifier in SwiftUI. We've set the sheet's height to the medium value, which roughly places it in the middle of the screen. However, this is only an approximation and not the exact middle.

swift
struct ContentView: View {
    @State private var showSheet: Bool = false

    var body: some View {
        Button {
            showSheet.toggle()
        } label: {
            Image(systemName: "plus.circle")
                .font(.system(size: 40))
                .foregroundStyle(.tint)
        }
        .sheet(isPresented: $showSheet) {
            sheetContentView
                .presentationBackground(.ultraThinMaterial)
                .presentationDragIndicator(.visible)
                .presentationDetents([.medium])
        }
    }

    private var sheetContentView: some View {
        ZStack {
            Color.black.opacity(0.2).ignoresSafeArea()
            VStack {
                ForEach(0..<10) { value in
                    Text("Hi there!")
                }
            }
            .padding(20)
        }
    }
}

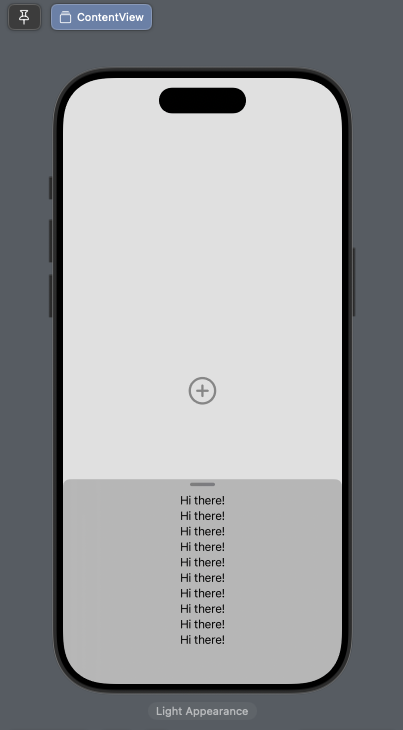

This code will output the following result:

But if we change the number of Text views like this:

swift
 private var sheetContentView: some View {
        ZStack {
            Color.black.opacity(0.2).ignoresSafeArea()
            VStack {
                ForEach(0..<40) { value in
                    Text("Hi there!")
                }
            }
            .padding(20)
        }
    }

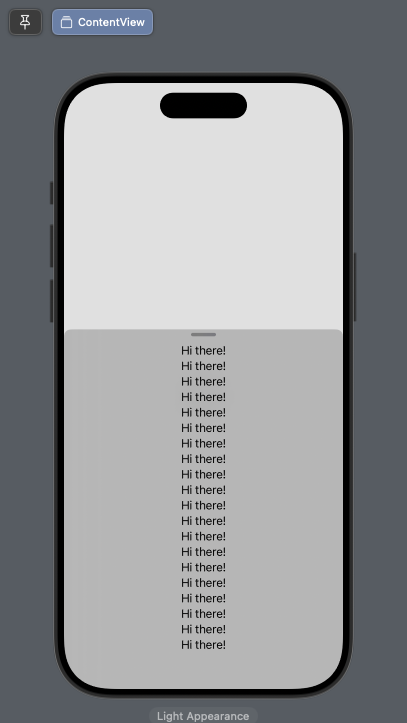

Our content will be cropped and overflow:

Of course, this is an exaggeration, and there are likely multiple ways to address this, with a ScrollView being the most obvious solution. However, in this article, we’ll focus on the basic approach for scenarios where you need an image or certain views that can't have a hardcoded height value.

In this case, the medium detent height is considered a hardcoded value and is fixed. Any content that exceeds this value will cause it to overflow.

Proposed solution

The easiest approach that works in many cases is to use a combination of GeometryReader, preference keys, view modifiers, and view extensions.

1. Create a custom PreferenceKey

swift
struct AdaptableHeightPreferenceKey: PreferenceKey {
    static var defaultValue: CGFloat?

    static func reduce(value: inout CGFloat?, nextValue: () -> CGFloat?) {
        guard let nextValue = nextValue() else { return }
        value = nextValue
    }
}

This code defines a custom PreferenceKey called AdaptableHeightPreferenceKey to store and update a CGFloat value. It allows views to communicate their height to parent views by passing the height through the PreferenceKey mechanism, enabling dynamic adjustments based on the content.

2. Create a custom View Modifier

swift
struct AdaptableHeightModifier: ViewModifier {
    @Binding var currentHeight: CGFloat

    private var sizeView: some View {
        GeometryReader { geometry in
            Color.clear
                .preference(key: AdaptableHeightPreferenceKey.self, value: geometry.size.height)
        }
    }

    func body(content: Content) -> some View {
        content
            .background(sizeView)
            .onPreferenceChange(AdaptableHeightPreferenceKey.self) { height in
                if let height {
                    currentHeight = height
                }
            }
    }
}

Here, we define a ViewModifier called AdaptableHeightModifier that dynamically adjusts a view's height based on its content.

It uses a GeometryReader to measure the height of the view and passes the value using a PreferenceKey. The modifier listens for changes to this value and updates the currentHeight binding with the new height, enabling adaptive resizing of the view.

By placing the GeometryReader in the background with Color.clear ensures that it doesn't interfere with the layout or structure of the view.

3. Create a View extension

swift
extension View {
    func readAndBindHeight(to height: Binding<CGFloat>) -> some View {
        self.modifier(AdaptableHeightModifier(currentHeight: height))
    }
}

Above, we created an extension for View that adds a method called readAndBindHeight(to:).

When you call this method on a view, it applies the AdaptableHeightModifier, which measures the height of the view and binds that height to a Binding<CGFloat>. This allows the view's height to be dynamically tracked and updated outside of the view itself.

Now we just need to add another @State variable to our view just like this:

swift
@State private var detentHeight: CGFloat = 0

And then use this new modifier on our bottom sheet with the height detent this time:

swift
.sheet(isPresented: $showSheet) {
            sheetContentView
                .presentationBackground(.ultraThinMaterial)
                .presentationDragIndicator(.visible)
                .presentationDetents([.height(detentHeight)])
                .readAndBindHeight(to: $detentHeight)
        }

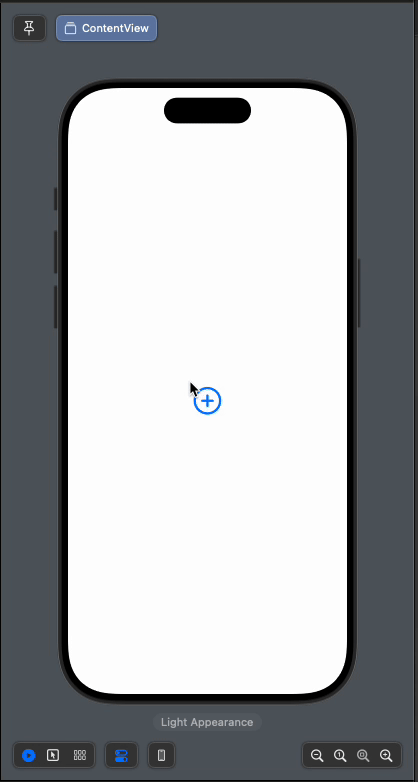

And that's it! Now, the bottom sheet height will dynamically adjust based on the content inside it.

Thanks for stopping by! 🪴
