How to take a screenshot/snapshot of a Scroll View in SwiftUI.

Capturing a long screenshot of a ScrollView in SwiftUI can be challenging, but it's quite feasible with the right approach.

In our case, capturing a screenshot of a scroll view that extends beyond the visible area of the screen requires several steps.

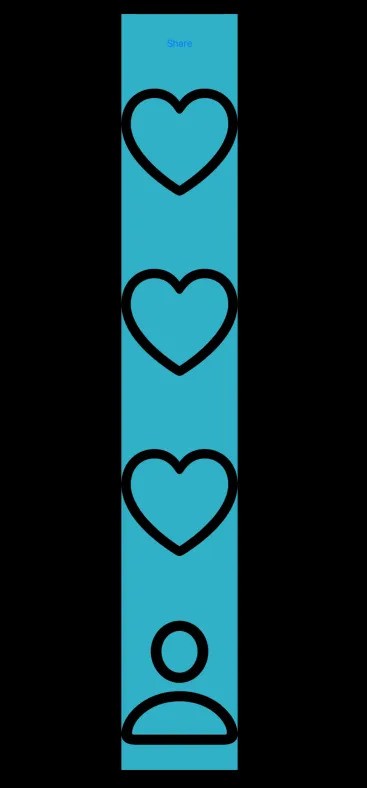

This is the final screenshot that we will obtain:

Let’s start with the UI:

swift

var body: some View {
  ZStack {
    Color.teal.edgesIgnoringSafeArea(.all)
    ScrollView(showsIndicators: false) {
      scrollContent
    }
  }
}

In this article, we'll use some system images and a button placed inside the scroll view (scrollContent). The button will let us capture an image and open an activity controller, allowing us to save the image locally.

swift

private var scrollContent: some View {
  VStack(spacing: 10) {
    Button("Share") {
      shareImage()
    }
    .padding(.top, 40)
    ForEach(0..<3) { _ in
      Image(systemName: "heart")
        .resizable()
        .scaledToFit()
        .frame(width: 200, height: 300)
    }
    Image(systemName: "person")
      .resizable()
      .scaledToFit()
      .frame(width: 200, height: 300)
  }
}

The shareImage() function captures an image and attaches it to an UIActivityViewController and presents it.

swift

private func shareImage() {
    guard let screenshotImage = scrollContent.snapshot() else { return }
    let activityController = UIActivityViewController(
        activityItems: [screenshotImage], applicationActivities: nil)
    let vc = UIApplication.shared.windows.first!.rootViewController
    vc?.present(activityController, animated: true)
}

In the code above, we capture an image by calling the snapshot() function on the scrollContent variable. To enable this, we declared scrollContent as a variable outside of the body.

Here is the snapshot function as a UIView extension:

swift

extension View {
    func snapshot() -> UIImage? {
        let controller = UIHostingController(
            rootView: self.ignoresSafeArea().fixedSize(horizontal: true, vertical: true))
        guard let view = controller.view else { return nil }

        let targetSize = view.intrinsicContentSize // to capture entire scroll content
        if targetSize.width <= 0 || targetSize.height <= 0 { return nil }

        view.bounds = CGRect(origin: .zero, size: targetSize)
        view.backgroundColor = .systemTeal // set it to clear if no background color is preffered

        let renderer = UIGraphicsImageRenderer(size: targetSize)
        return renderer.image { rendereContext in
            view.drawHierarchy(in: controller.view.bounds, afterScreenUpdates: true)
        }
    }
}

This is what happens:

• Insert the view that calls the function into a UIHostingController.
• Extract the UIView from the hosting controller.
• Set the bounds to the intrinsicContentSize to capture the entire content.
• Use UIGraphicsImageRenderer to generate a UIImage that can be shared.

Thanks for stopping by! 😸
